The following Video Template Editor window will appear:
3. OurQFace Face Pattern Guidelines The current OurQFace Face Pattern Guidelines are as follows: The user provided face will be superimposed onto a Face Pattern, if any, drawn within each image of the video template to represent the user provided face. The first Face Pattern must be a black face (6-byte BGR color code = 000000) with only two white eyes and one white mouth (6 byte BGR color code = FFFFFF). The two eyes must be of similar sizes. Each of the two eyes must be smaller in size than the mouth. The arrangement and sizes of the two eyes and the mouth must resemble those of a real human face. If the eyes and mouth of the Face Pattern is drawn rotated to the left or right, the superimposed user provided face will be rotated as well. Furthermore, the size of the superimposed user provided face varies proportionally with the size of the Face Pattern. The user provided background will be superimposed onto the empty background area of the video template. This empty background area must be in the same colour. Future versions of OurQFace software will add in the following additional guidelines: More colour codes for the second and more Face Patterns, so that you can add in 2 or more different faces. Instead of making fun of one of your friend, you can then make fun of 2 or more friends. Position of the eyes and mouth relative to the whole Face Pattern. This will allow faces tilted at various angles. Specification for the shape of the eyes and mouth of the Face Pattern. Example: eye open, eye closed, mouth open, mouth closed. This will allow faces of various facial expressions. 4. How to combine your image files into a video template AVI file? To combine your image files into a video template AVI file, the steps are as follows: Click the [Files to AVI] tab near the top-left corner of the Video Template Editor window to reach the tab as shown in the following picture: Key-in or select the "Input Folder" which is the folder containing your image files to be combined. Key-in or select the "First Input File" which is the first image file to be combined in the "Input Folder". Key-in or select the "Last Input File" which is the last image file to be combined in the "Input Folder". Select the "Maximum File Step", which is the maximum step between the 5-digit number of your image file names in the "Input Folder". Key-in or select the "Output AVI File" which is the file name of your output video template AVI file. Select the "Frame Rate", which is the frame rate your output video template will be playing. Select the "Compression", which is the video compression for your output video template. "(No Compression)" or "MJPEG Compressor" is recommended. Click the [Start] button to start the combination. Once the combination is completed, remember to click the [Play] button to play and test your newly created video template. You are also advised to test your video template with OurQFace software before you share or sell it. 5. Menu The menu is at the top-left corner of the Video Template Editor window as follows:
Future versions of OurQFace software will add in the following additional guidelines:

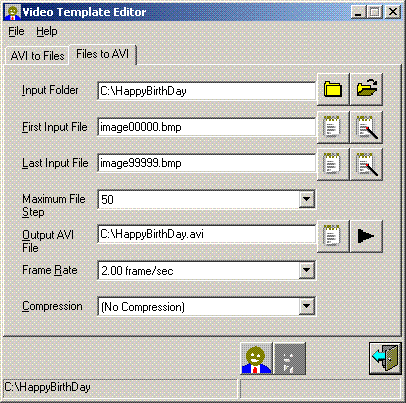

4. How to combine your image files into a video template AVI file? To combine your image files into a video template AVI file, the steps are as follows: Click the [Files to AVI] tab near the top-left corner of the Video Template Editor window to reach the tab as shown in the following picture: Key-in or select the "Input Folder" which is the folder containing your image files to be combined. Key-in or select the "First Input File" which is the first image file to be combined in the "Input Folder". Key-in or select the "Last Input File" which is the last image file to be combined in the "Input Folder". Select the "Maximum File Step", which is the maximum step between the 5-digit number of your image file names in the "Input Folder". Key-in or select the "Output AVI File" which is the file name of your output video template AVI file. Select the "Frame Rate", which is the frame rate your output video template will be playing. Select the "Compression", which is the video compression for your output video template. "(No Compression)" or "MJPEG Compressor" is recommended. Click the [Start] button to start the combination. Once the combination is completed, remember to click the [Play] button to play and test your newly created video template. You are also advised to test your video template with OurQFace software before you share or sell it. 5. Menu The menu is at the top-left corner of the Video Template Editor window as follows:
The menu items are explained as follows:
6. Exit To exit Video Template Editor, click the [Exit] button. 7. Feedback to us Please contact us with the following details to provide feedback on Video Template Editor: Your name Your job title Your company or organisation name Your contact email Please indicate your intention as: "OurQFace - Video Template Editor Feedback" Your feedback
7. Feedback to us Please contact us with the following details to provide feedback on Video Template Editor:

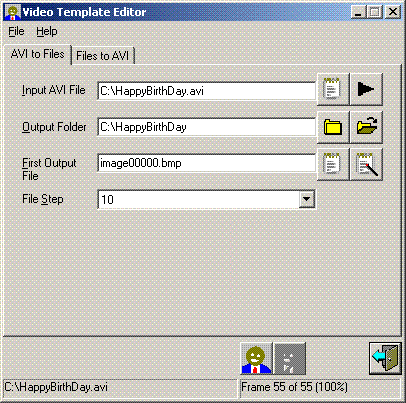

[Start] button to start the extraction.
[Open Folder] button to open the "Output Folder" to reach your extracted BMP image files.
[Play] button to play and test your newly created video template. You are also advised to test your video template with OurQFace software before you share or sell it.
[Exit] button.
